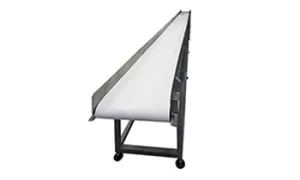

White Conveyor Belt

Leadworld White Conveyor BeltProduct Name: White Conveyor Belt
Brand Name: Leadworld
Place of Origin: Shanghai, China
Model Number: LW
Certification: ISO9001
MOQ: 1 Meter/Meters
Warranty: 12 Months


Leadworld’s white conveyor belt has a simple structure, easy maintenance, smooth transportation, adjustable speed according to needs, low noise, and is suitable for quiet working environments. Conveyor belt, also known as assembly line, is the general term for mechanical equipment used to transport materials and products in production. Conveyor lines are basically used in all industries. They run through the entire production and circulation process. They not only complete the task of transporting goods, but also cooperate in completing multiple processes during the transport process. For on-site production companies and logistics companies, improving efficiency, reducing labor costs, and improving operational stability play an irreplaceable role.

Product Description

Product NameFood grade PVC flat belting conveyor/potato conveyor belt roller
Power0.75KW
Width/ Diameter10-500mm
StructureBelt conveyor
Core ComponentsPressure vessel, Motor, Other, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG)200 kg
MaterialPlastic
Material FeatureHeat Resistant
VoltageRequirement
Dimension(L*W*H)Customer Request
ColorWhite/can be customized
InstallationEngineer’s Guide
Belt materialPVC
StandardsGB10595-89/ISO9001
FeatureEasy Cleanliness
MotorShanghai Electric Appliance
Frame MaterialSUS304
Supply Ability1000 Set/Sets per Month food grade PVC flat belting conveyor/potato conveyor belt

Product Components

1. Line body part

1.1 Main body side plate: SUS304 stainless steel plate with plate thickness δ2.0 mm, standard section: 2000 mm, made according to actual size;

1.2 Roller: Made of SUS304 stainless steel, the diameter is determined according to the actual load, with positive and negative tolerances

1.3 Support wheel: Made of nylon material, the diameter is determined according to the actual load, with positive and negative tolerances;

1.4 Foot plate: nylon injection molded, equipped with stainless steel adjustment screw M16, fixed to the ground with expansion bolts;

1.5 The guardrail uses large C aluminum rails and wear-resistant sheaths;

1.6 Connection plate and bracket plate: plate thickness δ3.0mm stainless steel bending molding;

1.7 Accessories: seated bearings, various SUS304 screws, etc.

2. Carrier part

2.1 Belt length <effective length>*width mm (made according to actual size);

2.2 Edge protection: The height of skirt protection and middle baffle can be made according to the actual size of the material;

2.3 Material: PVC, PU;

2.4 Color: white, blue, green

3. Power supply part

3.1 Reduction motor: Taiwan polis, power P=1.5kw/0.75kw;

3.2 Linear speed: v=0-25m/min;

3.3 Speed regulation selection: Danfoss frequency converter from Denmark.

4. Control part

4.1 Electric control box material: 1.5mm SUS304 stainless steel plate is bent and welded.

4.2 Electrical control components: circuit breakers, AC contactors, push button switches, red and green indicator lights are all from Schneider.

Product FAQ

1. Who are we?
Shanghai Leadworld Machinery Technology Co., Ltd. is a company specializing in the development, research and manufacturing of various complete sets of packaging production systems, and has marketing and self-operated import and export capabilities. With strong technical strength, we are guided by market demand and take product development as our responsibility. We can design the best economical and reasonable solutions and programs. Advanced design, professional technology, and precision manufacturing are our distinctive features. The company strictly implements the ISO9001:2000 international quality management system and has established an integrity-based quality assurance system to ensure product quality and performance. Our company is committed to digesting and absorbing internationally advanced processing science and automation equipment.

2. What are the company’s main products?
Palletizers, conveyors, filling lines, sealers, capping machines, packaging machines and labeling machines.

3. What is the delivery date of the product?
Delivery dates for most machines are typically 30 working days.

4. What is the payment term?
30% deposit in advance and 70% before the machine is shipped.

5. How to ensure the quality?
We have complete working systems and procedures and strictly implement them. Our different workers are responsible for different work processes. Their jobs are determined and they will always operate this process, so they are very experienced. The electrical and pneumatic components are all from world-renowned companies, such as Siemens of Germany and Panasonic of Japan. After the machine is completed we will conduct a strict trial run. Our machines are certified by SGS and ISO.

6. Can you design the machine according to our requirements?
Yes. We can not only customize machines according to your technical drawings, but also customize new machines according to your requirements.

7. Can you provide overseas technical support?
Yes. If needed, we can send engineers to your company to set up the machines and train your workers.
