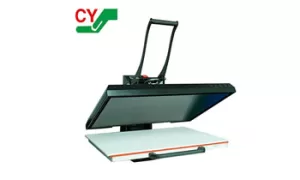

Big Heat Press Machine

SHENGHUA Big Heat Press MachineProduct Name: Big Heat Press Machine
Brand Name: SHENGHUA
Place of Origin: Guangdong, China
Model Number: CY-G2
MOQ: 1 Set/Sets
Certificate: CE
Warranty: 1 year


SHENGHUA’s big heat press machine adopts ultra-precise tube technology for hot plate manufacturing. The heating plate adopts special ultra-precision wire tube technology to effectively maintain temperature balance and stability. The heat press machine has a fully digital temperature and time display, and the temperature range is -2 to +2 degrees. Based on kinematic design, our big heat press machine has the advantages of simple operation and uniform pressure. The silicone pad of our heat press can withstand up to 350 degrees without deformation.

Product Description

Gross Power 2000W/2200W/2500W/2600W Usage Cloths Printer, Label
Printer, Paper Printer
Type Heat Press Machine Condition New
Product Name Big Heat Press Machine Brand Name SHENGHUA
Model Number CY-G2 Automatic Grade Semi-Automatic
Voltage 110V/60Hz&220V/50Hz Dimensions(L*W*H) 72*46*45CM,78*68*46CM,
78*68*46CM,84*76*53CM
Weight 27KG,35KG,40KG,50KG warranty 1 year
After-sales Service Provided Overseas service center available

Product operating instructions

Please read before operation

1. Be sure to use a safety ground wire for operation. Do not use extension cords.
2. Check the voltage before use. When not in use for a long time, the machine should be turned off and the power supply cut off.
3. When the machine is heating, please do not touch the hot plate to avoid burns.
4. When pressing the handle, if you feel that the pressure is too high and the machine is difficult to lock, you can adjust the pressure with your hands.
5. Keep children away from the machine. Do not leave machine on unattended.
6. Never transfer items that are thicker than 1/4 inch or unsuitable for the application.

Operating procedures

1. Turn on the machine and plug it into the wall circuit. Turn on the power switch until the red light turns on. Do not use extension cords.
2. Adjust the “Time and Temperature Controller” to set the correct time and temperature required for heat transfer (usually 248F-392F/120℃-200℃).
3. When the timer sounds, the transfer is complete.
4. When finished, turn off the machine.

Maintenance and troubleshooting

If the transfer material you are using does not stick to the garment, first check that the temperature and time are correct and increase the pressure if needed.
Please note that successful printing requires the correct time, temperature and pressure

Product Features

1. Digital two-in-one time and temperature controller.
2. Aluminum hot plate, the surface is heated evenly.
3. The heating plate is coated with polytetrafluoroethylene, which is convenient and beautiful.
4. Delivery pressure completion signal indicator light.
5. Convenient pressure adjustment
6. The silicone pad can withstand up to 350 degrees without deformation

Product FAQ

1. Who are we?
Shenghua Sublimation Printing Machine Equipment Co., Ltd. is one of the leading manufacturers and exporters of heat press machines in China. More than 10 years of experience in dye-sublimation products. SHENGHUA focuses on heat press transfer machines and sublimation ink, paper, coated cups, plates and other consumables. Our factory covers an area of 8000mm. We have obtained CE and SGS certificates and promise 1-year warranty to our customers. With 11 years of experience in this field, we enjoy a high reputation for our strong production capabilities, high-quality products and timely delivery.
