H Type MFDC Resistance Welding Machine

Resistance Welding Machine

Resistance Welding Machine

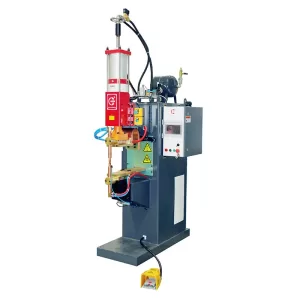

Product Name: H type MFDC Spot & Projection Welder DB-880KVA
Brand Name: Heron Welder
Place of Origin: Guangdong, China
Controller: HRC-802/803
Model: Type H; 880KVA
MOQ: 1pcs
Price Terms: FOB Guangzhou
Industries: Auto parts industry, home appliance industry, compressor industry, hardware industry, etc.
Optional: Welding head: roller ram style/ round shaft guide Controller: HRC-802/803

Inquiry




The H type MFDC spot & projection welder DB-880KVA with roller ram, and strong frame, which ensure good spot and projection welding process reliable, and the welding current can be raised up in 3ms, the maximum shortcut current can be 60KA.

Product Details

Model DB-880
Rated Capacity KVA 880
Power Supply V/Φ/Hz 380V/3Φ/50Hz
Max. Primary Current A 700
Primary Cable MM2 3*35+2*16
Max. Short Circuit Current KA 110
Rated Duty Cycle % 20
Secondary Empty Voltage V 10.4
Welding Cylinder Size Φ*L Φ250*150
Max. Working Pressure N 24049
Throat Depth MM 400
Arm Gap MM 400
Dimensions H(MM) 2435
L(MM) 1245
W(MM) 1000



Main Features

Welding head can be Roller ram or round shaft guide, cylinder specifications φ160 * 120
Equipment color Machine body : graphite gray RAL7024, back door signal white RAL9003;

control box: front:signal white RAL9003, body  graphite gray RAL7024

welding head: red RAT4L001

Water circuit Display table + flow switch
Controller HRC-802 (with PLC)
Throat depth 500mm
Platen gap 340mm
Power Available for 880KVA
Inverter size 600A/1200A
Electrode tile T-type (150 wide)
PLC Mitsubishi / Siemens optional
Touch screen Kunlun Tongtai
Feet Shock-absorbing feet

Application

MFDC Resistance Welding Machine, used in auto-part industry, appliance industry, compressor industry, hardware manufacturing industry, etc. The welded workpieces are the car door frame, car seat slide, water heater inlet and outlet pipe, dishwasher liner, etc. It has good rigidity, compact design, and low space occupation.
