Waterproof Wire Grommet

ORK Waterproof Wire GrommetProduct Name: Waterproof Wire Grommet
Brand Name: ORK
Place of Origin: Guangdong, China
Model: Customized
MOQ: 100 USD per item
Payment: L/C, T/T, Paypal
Delivery Time: 20-45 days according to quantity
Certification: ISO9001, IATF16949, FDA, RoHs, Reach

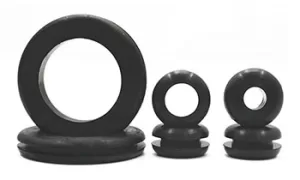

ORK waterproof wire grommet can be made of plastic or rubber, our factory mainly produces rubber grommets. Common materials include Silicone, SBR & NBR. SBR and NBR rubber gasket materials are interchangeable in most applications. Rubber grommets are designed to be pushed into holes to protect wires, cables, hoses and other objects passing through them from damage and vibration. Exact shape, style and finish may vary, but function is the same. As a professional rubber grommet manufacturer, our waterproof wire grommet is in various varieties, carefully manufactured with high-quality thick material and reliable in quality. Widely used in petroleum, chemical industry, machinery, metallurgy and other industries.

Product Description

Item Description
Size According to drawing or sample
Color Commonly used black, also can be white,green and so on,you can also send me a color NO.
Hardness Duro 30 to 80 Shore A
Hardness Tolerance +/-5 Shore A
Temperature Range -40 ℃ to 100 ℃ or -60 ℃ to 200 ℃

Materials Description

Material:SIL(Silicone Rubber)
Advantage:1. Excellent Rebound Resistance
2. Excellent Oxygen and Ozone Resistance
3. Excellent Weathering and Heat Resistance
4. Excellent Heat and Low Temperature Resistance
5. Good heat insulation and heat dissipation.
6. Good electrical insulation
Disadvantage:1. Poor Aliphatic-solvent Resistance
2. Poor Alkaline Resistance
Features:1. Fine finish
2. Cost effective
3. Long life
Temperature:-40ºC-220ºC, -100ºC-250ºC(special formula)
Application:1. the household appliances industry seal or rubber parts, such as electric kettle,
electric irons, microwave oven rubber parts.
2. The electronics industry seal or rubber parts, such as mobile phone keys, shock
pad DVD, cable joint seal etc.
3. Contact with the human body on various types of products on the seal, such as
water bottles, water dispensers

Customization Process

1. Customers provide drawings or samples.
2. Make molds (tooling).
3. Make samples and send to customers.
4. Mass production after sample confirmation.
5. Packaging and transportation.
6. After-sales service, if you have any quality problems, you can come to me.

Product FAQ

1. Who are we?
Ruichen Sealing Co., Ltd., established in 2006, is a professional manufacturer of rubber sealing products in China, mainly producing rubber seals. Our rubber seals can be widely used in industries such as electronics, auto parts, toys, connectors, power tools and pneumatic components. ORK company has passed ISO9001 and IATF16949 quality system. As a professional supplier of rubber seals, we can provide a variety of materials and colors for customers to choose from.

2. Are your products customizable?
Yes, all most of our products are customizable.
(1) If the customer has a drawing, which includes size, material, special requirements, then we can make the mold according to the drawing.
(2) If the customer has no drawings, but has samples, you need to send the samples to our engineer, then we measure the size, and make the drawings. Then we make the mold according to the drawing.

3. What is the advantage of your factory?
Our factory has more than 4,000 O-ring molds, the products are available in various materials and colors, and our company has ISO9001, IATF 16949, RoHs, Reach, FDA and other certificates or reports.
