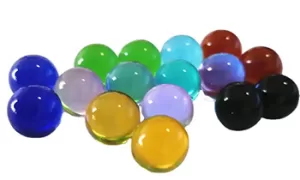

Solid Color Marbles

PT BALLS - solid color marbles manufacturerProduct Name: Solid Color Marbles
Brand Name: PT BALLS
Place of Origin: Shandong, China
Model Number: Glass Ball/ Bead
MOQ: 100pcs
Sample: Free Charge Sample
OEM: Yes


Solid color marbles are highly polished sphere of optically transparent homogeneous material. Carefully controlled manufacturing processes produce spheres with precise diameters and unrivaled surface quality. Spherical ball lenses are commonly used for laser collimation and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling. Larger spheres are easier to handle and reduce the sensitivity of translational alignment. However, smaller spheres have the advantage of being suitable for smaller packages. Hemispherical (hemispherical) lenses are ideal for applications such as fiber optic communications, endoscopes, microscopes, optical pickup devices, and laser measurement systems.

Product Description

Product Name
16mm 18mm 20mm 25mm 30mm solid colored glass marbles
Tolerance
±0.01mm,± 0.015mm, ± 0.02mm+/-0.005mm  +/-0.0025mm
Color
transparent ,clear
Size
0.6mm-60mm
Specification
Diameter (mm):0.5mm-100mmRadius Tolerance (μm):+0/-0.01

Center Thickness Tolerance:(mm) ±0.01

Surface Quality:20-10

Substrate:N-BK7 or other optical material

Coating:None or as requested

RoHS Compliant

Applications
Bearings,lotion pump,sprayers,roll on bottle,plastic valves, perfume sprayer, wine bottle,decoration,spray paint,grinding food, trigger spray, etc
Main component
Na2O (14%-15%)
CaO (7%-8.5%)
SiO2 (70%-71%)
Al2O3 (2.5%-3%)
Surface finish
Ground – 20-30 RMS    Polished – 10-20 RMS
Density
2.4 gm/cm

Product FAQ

1. Who are we?
We are Shandong PT International Trade Co., Ltd., a professional manufacturer of high precision glass balls. Our glass balls are widely used in cosmetic bottles, lotions, pumps, spray pumps, bearings, corks, ball valves, spray paints, inks, decorations, grinding food and other precision machinery.

2. What is the size range?
Soda lime glass ball size: 1mm-16mm
Borosilicate glass ball size: 1.588mm-50.8mm

3. What material balls can you produce?
We are able to produce materials of soda calcium, borosilicate glass spheres, POM, PP, PA66 plastic spheres.

4. What kind of tolerance can you produce?
We can produce tolerances of ±0.01mm, ±0.015mm, ±0.02mm. Most of them produce ±0.02mm.

5. What colors can you produce?
Usually produces clear, transparent colors. Other colors can also be produced upon your request.

6. What is your MOQ?
Usually 100pcs, if we have balls in stock, no MOQ is required.

7. Do you provide free samples?
Yes, we can provide free samples. But you should pay for the express fee.
