Rocket Cavity PCB

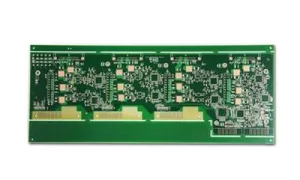

cavity pcbProduct Name: Cavity PCB
Brand name: Rocket
Place of Origin: China
Payment: l/c, t/t, westernunion
Certification: ul consumer/ industrial control/ automobile/ medical/server, cloud computing & base station/ aviation/ military/communication (certification in related applications)


The cavity PCB provides space for electronic components such as capacitors, transistors and logic modules, making the overall structure of the assembled PCB thinner. They can be applied to multilayer PCBs, and when used on a single board, they can provide different layouts with multiple cavities of different depths.

Product Info.


Materialfr4
Board Thickness1.6mm
Surface Treatmentimmersion gold
Technologystack up n+n, min track/width 3/3mil, blind & buried vias, laser vias
Delivery Termddu, fob, cfa, cif, cpt, exw

Product Details


Cavity PCB play an important role in the miniaturization of electronic products. The cavities of PCBs have structural grooves for additional functionality compared to standard PCBs. The main driving forces behind the resonator are temperature control and miniaturization of electronics. As smaller products become more and more popular, more and more customers are turning to us for cavity PCB technology. Most hollow panels are produced by controlled depth milling on special milling machines. The cavity can be coated with metal if desired.

Product FAQ

1. Who are we?

We are Rocket PCB Solutions Ltd, providing full PCB prototyping and mass production services. With an extensive range of prototypes available, we guarantee the best quality in our mass production runs. Our product lines include rigid, rigid-flex, HDI, arbitrary layer, flexible, large size, embedded, RF, LED, backplane, metal substrate, ceramic substrate, IC structure, high frequency, and thick copper PCBs, all of which undergo rigorous quality checks.

At present, we specialize in high-speed server boards, big data storage boards, high-frequency hybrid boards, HDI multi-layer boards, IoT modules, and security boards. These are widely used in the communications, medical, military, security, industrial, and automotive industries. Our products are exported to North America, Europe, Asia Pacific, and other international regions, demonstrating our commitment to providing excellent quality products and services worldwide.

2. I’m going to place a big order, but I need to test your quality first. Is that possible?

Absolutely. You can place a prototype order first and use the following two options to check quality and then let us know if you want to place an order for mass production.

Option 1: We can send on-board images for your basic check and inspection. Once confirmed, you may order large quantities of products and we will ship all the circuit boards to you at once.

Option 2: We can ship some boards to you for your full inspection. Once confirmed, you can order the rest of the boards.

3. How do I order? How can I get the PCB fabrication price?

​Online: Get a Free Quote through our real-time online consultation.
Email: Send an email to [email protected] and offer the following information: Name, company, address, phone number, email address, product number, quantity, turnaround time and any additional information you wish to share with us and also your Gerber file.

4. How do you secure customer files and information?

We adopt the NDA agreement and ERP system and each employee has the appropriate permissions.

5. What if I have problems with my loaded boards?

If you find any problems after receiving your loaded boards, please contact us at once. We will evaluate the problem and repair, rework or remake it after determining the root cause of the problem.

6. How can you guarantee quality when your price is so low?

Working with more than a dozen state-of-the-art suppliers in China, Rocket PCB provides a complete production line and offers the most cost-effective solution. With our efficient direct sales channels, our overhead is extremely low to ensure you get the most favorable price.

7. What do you specialise in?

​Rocket PCB specializes in PCB manufacturing in any quantity.
