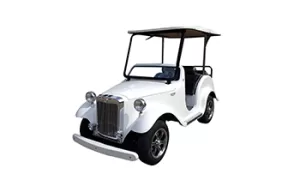

Mini Gas Cars

JInghang Mini Gas CarsProduct Name: Mini Gas Cars
Brand Name: JInghang
Place of Origin: Zhejiang, China
Steering: Right
Frame: Aluminum chasis
Supply Ability: 1000 Sets per Month
MOQ: 1 Set/Sets


JInghang’s mini gas cars are 2- and 4-seater classic electric classic cars, available in a variety of colors including red, yellow, white, black, pink, green, and blue. Our factory specializes in the design and production of gas, electric golf carts and sightseeing carts. It can make its own frames and paint them by itself.

Product Details

BATTERY POWER GASOLINE POWER
Model no.: JHLYC-E2-2S Model no.: JHLYC-G2-2S
  KEY COMPONENTS
Motor: 4kw DC or 5kw AC Motor Engine: High quality 300CC Single Cylinder, Vetical, 4-Stroke, water cool, Sohc-4 vavle
Controller: Imported Curtis Controller,  275A-400A Horse power &Torque: 23.12HP(17KW),  25N.m
Battery: 48v 180ah  Six cells 8-volt deep cycle(Standard)
Options: Maintanenece free battery OR Lithium battery
Drive Train: Automatic, continuously variable transmission (CVT)
Charger: 100-240v intelligent pulse charge
with the function to recover the battery
Fuel 12L
 BODY & CHASSIS
Frame: High intense aluminum frame
Body&Roof: Glass fiber reinforced plastics
Windshield: Laminated glass with rain wiper
Cushion&  Backrest: Reborn sponge with artificial leather and plastic bottom cover (with different colors)
Dashboard: Black plastic, with F/R switch, battery power indicator, ignition key,mp3,charger port,music player Black  plastic,with  Fuel gauge, water temperature sensor,ignition key,mp3,charger port,music player
Color: Any color as requirements(we also accept custom colors)
 STEERING & SUSPENSION
Steering: Self-compensating rack and pinion
Suspension: Lifted heavy duty leaf spring with dumper&spring absorber
Brake System: Rear drum brake Rear hydraulic brake with pedal park brake
Accelerator: Stepless speed change
Transimission: Motor Shaft Direct Drive Shaft drive
Rear Axle: Differential  model
Gear Selection: F-N-R
F&R tyre: 175/70R14
Start way: Electric start with key
PERFORMANCE
Passenger 4 Person
Range (loaded): More than 100kms More than 300kms for each full tank.
Max.speed: 30km/h 45km/h
Max.climbing ability(loaded): 35%(full loaded) 40%(full loaded)
Brake Distance: ≤4M ≤4M
Curb weight: 700kgs 600kgs
Max.loading : 1100kgs 1000kgs
Charging time: 8-10 hours

Battery lifespan: More than 800times charge cycles (for standard battery)

DIMENSIONS
Overall   dimensions: 3420*1570*1940mm
Min ground clearance: 150mm
Wheelbase: 1920mm
F&R Tread: 1210mm/1150mm
Loading: 2units /20ft container, 4units /40GP container, 6units / 40HQ container
 ELECTRIC SYSTEMS
Lights: Head lights, night lights,tail lights,brake nights,turnning lights,  the lights powered for gas power model is one 12v 12 ah dry battery.
Combination   switch: Combination swith under the steering wheel with the switchs of head light,turnning lights and horn

Company Advantages

1: Competitive ex-factory price, multiple types for you to choose from.
2: Professional, direct and fast factory after-sales service support.
3: Provide gasoline power and battery power for you to choose from
4: The earliest factory in the industry, experienced and skilled workers, stable quality and excellent workmanship.
5: Strong production capacity, able to deliver your orders quickly and on time.
6: Many OEM services can be accepted as needed.

Product FAQ

1. Who are we?
We are Yongkang Jinghang Sightseeing Vehicle Co., Ltd., a professional manufacturer that develops and manufactures golf carts, specializing in the production of electric and gasoline golf carts. Being the only factory in China that can produce gasoline-powered golf carts since 2005, our gasoline golf carts have passed EPA testing and obtained EPA certificates.

2. What options are available for this golf cart?
Different body colors, seat belts, rear cargo box, interior rearview mirror, rain cover, sun cover, rear flip-up seat, aluminum chassis, front basket, GPS tracker, USB music player, or any other options Assembly according to your requirements!

3. What warranty does your product have?
The warranty period of all our carts is two years, starting from the time the cart leaves our seaport. For parts whose warranty period is interrupted due to non-human reasons, you can provide us with pictures of the damaged parts for free, and we will provide free replacement parts. But the buyer should bear the freight, whether by sea or air! If the order quantity is up to one container, we can offer 1% of the total order value as free parts. We can also supply out-of-warranty parts, but not at cost for free

4. What products does your factory produce?
Our factory produces 2-14-seat electric and gas-powered golf carts, tourist cars, multi-purpose vehicles, patrol cars, etc.

5. How do you control quality and test finished products before shipment?
We have advanced machinery and equipment that enable us to manufacture the frame well, while all other parts are purchased from well-known domestic brand companies to ensure that the vehicle has stable high quality, and we have more than 10 years of golf cart production experience . Most of our staff are very experienced over the years, ensuring good workmanship!
For testing, we have dedicated testers, we do preliminary testing at the factory, then we will test them by climbing 45 degree (gas powered) rugged hills and driving long distances to make sure they really work well before loading!

6. How is your after-sales service?
We have dedicated after-sales personnel who can provide you with professional answers or technical questions according to your requirements!

7. Do you provide OEM services?
We welcome all types of golf cart OEM orders, our factory can meet most of your OEM requirements, for OEM, please show us pictures!

8. What is your delivery time?
Suitable for ordinary electric golf carts
Sample: 10 working days Container order: 25 working days

Suitable for ordinary gasoline golf carts
Sample: 15 working days Container order: 30 working days

9. What payment terms do you accept?
T/T, L/C, Alibaba Trade Assurance, etc.

10. What is your delivery method?
We usually ship by sea, to check the shipping cost to your required destination port, please help us know your required quantity and destination port. For DDU delivery charges, please help us know your recipient address.
