Anytone DMR Digital Radio AT-D578UV

Anytone DMR Digital Radio AT-D578UV

Anytone DMR Digital Radio AT-D578UV

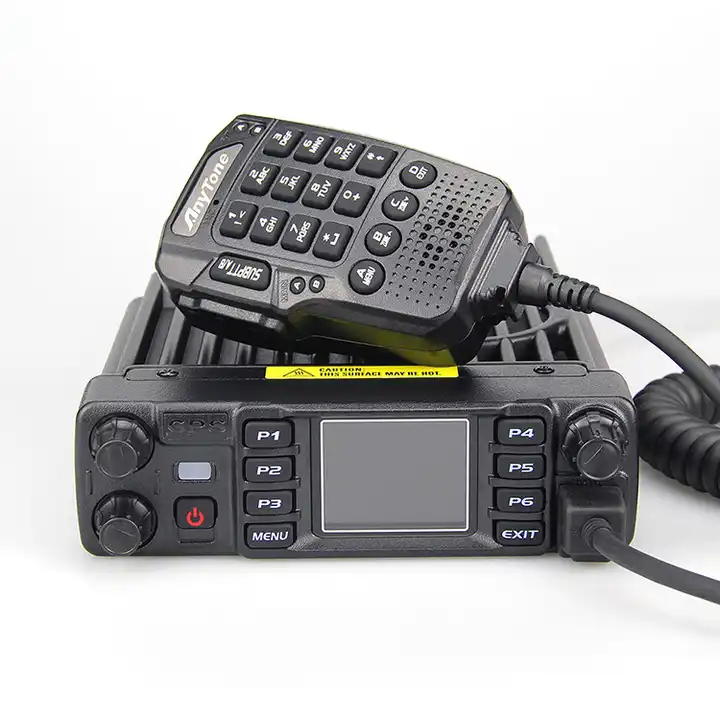

Anytone DMR Digital Radio commercial mobile transceiver is designed for professionals in fields such as Fire, Search & Rescue, EMS, Police, Sheriff, Forestry, and Security operations. It supports both digital and analog modes on VHF and UHF bands, and is compliant with Part 90 DMR regulations. The transceiver features a 1.77 inch color TFT display, Bluetooth connectivity, GPS functionality, and DMR roaming capabilities. Its frequency coverage ranges from 140-174 MHz to 400-480 MHz. Moreover, it comes with a USB programming cable and an external Bluetooth PTT button.

Product Details

GENERAL
Frequency Range 136-174MHz (V) , 400-490MHz (U)
Channel Capacity 4000 channels
Channel Spacing 25KHz (Wide Band) 12.5KHz (Narrow Band)
Phase-locked Step 5KHz, 6.25KHz
Operating Voltage 13.8V DC ±20%
Frequency Stability ±2.0ppm
Operating Temperature -20℃~ +55℃
TRANSMITTER
Power Output VHF: 50/25/10/5W
UHF: 45/25/10/5W
Modulation limit ±5.0KHz@25KHz (Wide Band)    ±[email protected] (Narrow Band)
Adjacent Channel Power ≥70dB (Wide Band)
≥60dB (Narrow Band)
Hum & Noise ≥40dB (Wide Band)
≥36dB (Narrow Band)
Spurious Emission ≥70dBc (Wide Band)
≥70dBc (Narrow Band)
4FSK Digital Modulation 12.5KHz(data)7K60FXD
12.5KHz(data+voice)7K60FXE
Audio Distortion ≤5%
Error rate ≤3%
RECEIVER
Sensitivity (12dB SINAD) ≤0.25μV (Wide Band)
≤0.35μV (Narrow Band)
Digital Sensitivity 0.3uV/-117.4dBm (BER 5%)
0.7uV/-110dBm (BER 1%)
Adjacent Channel Digital Sensitivity Selectivity ≥70dB (Wide Band)
≥60dB (Narrow Band)
Spurious Emission ≤-57dB (Wide Band)
≤-57dB (Narrow Band)
Spurious Rejection ≥70dB (Wide Band)
≥70dB (Narrow Band)
Blocking 84db
Hum & Noise ≥45dB (Wide Band)
≥40dB (Narrow Band)
Audio Distortion ≤5%
Audio Power Output ≥2W

Product FAQ

1.Who are we?

Our Company Qixiang Electron Science & Technology Co., Ltd, start in 1993, sells to mainly Western Europe & North America, also Eastern Asia, Oceania, Southeast Asia, Eastern Europe, and South America. There are total of about 300+ people in our factory.

2.Warranty

  • 18 months warranty for radio and 6 months for accessories.
  • If you Anytone DMR Digital Radio find any defective, please contact us within 3 days after you receive, thanks.
